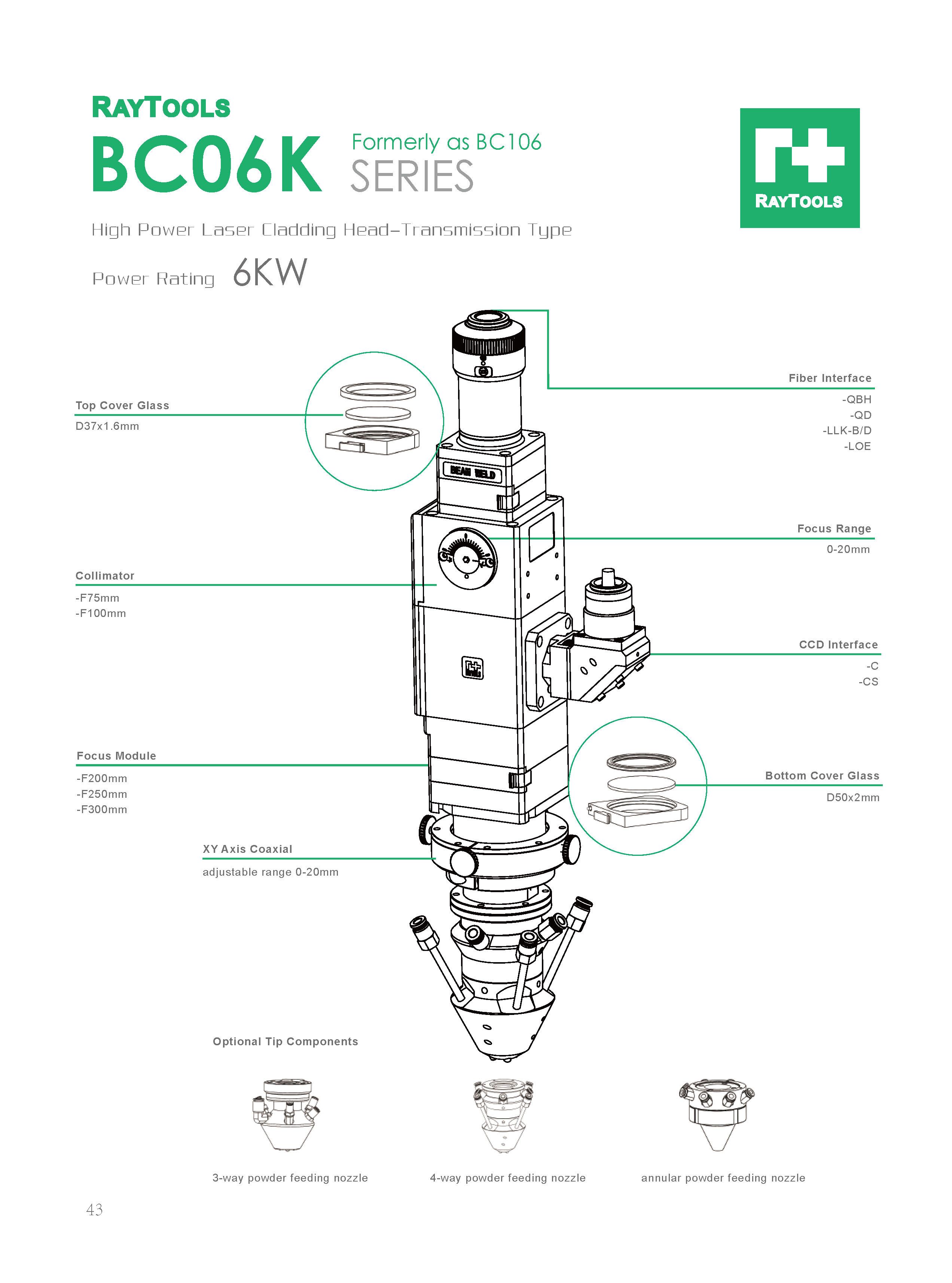

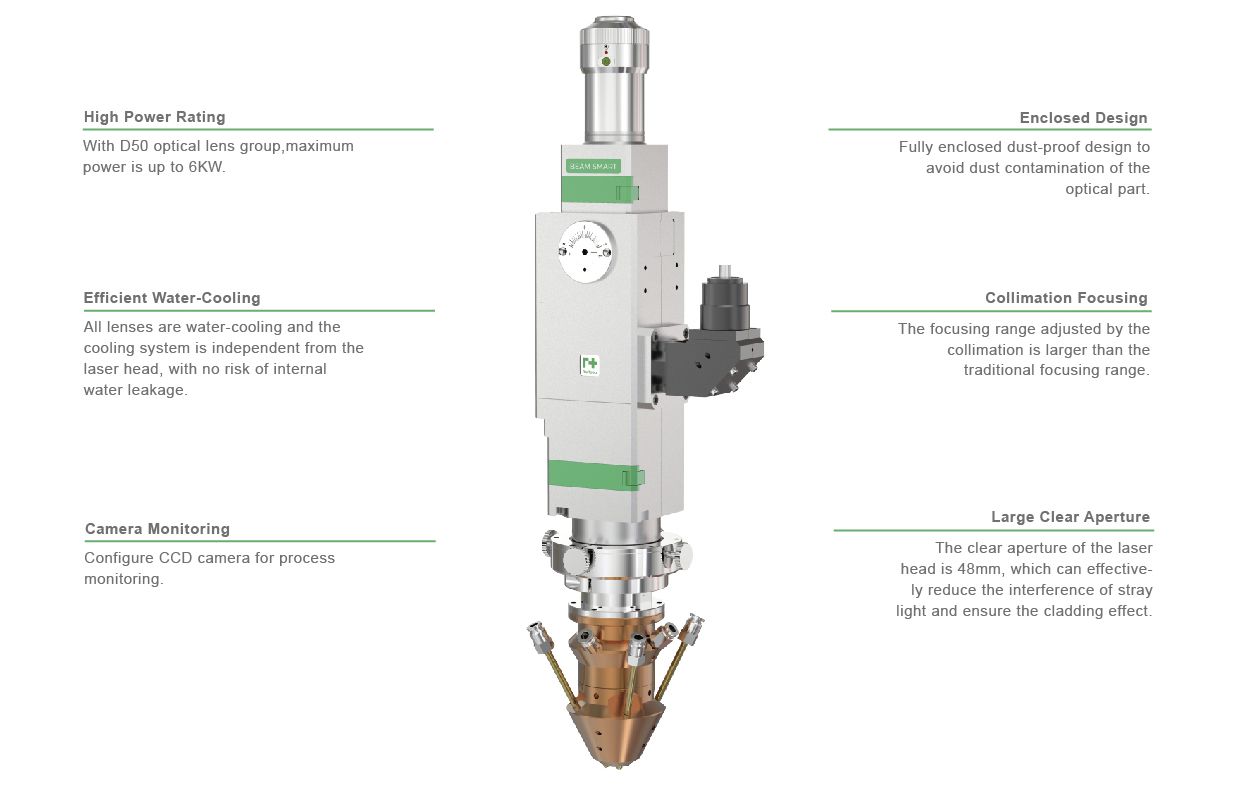

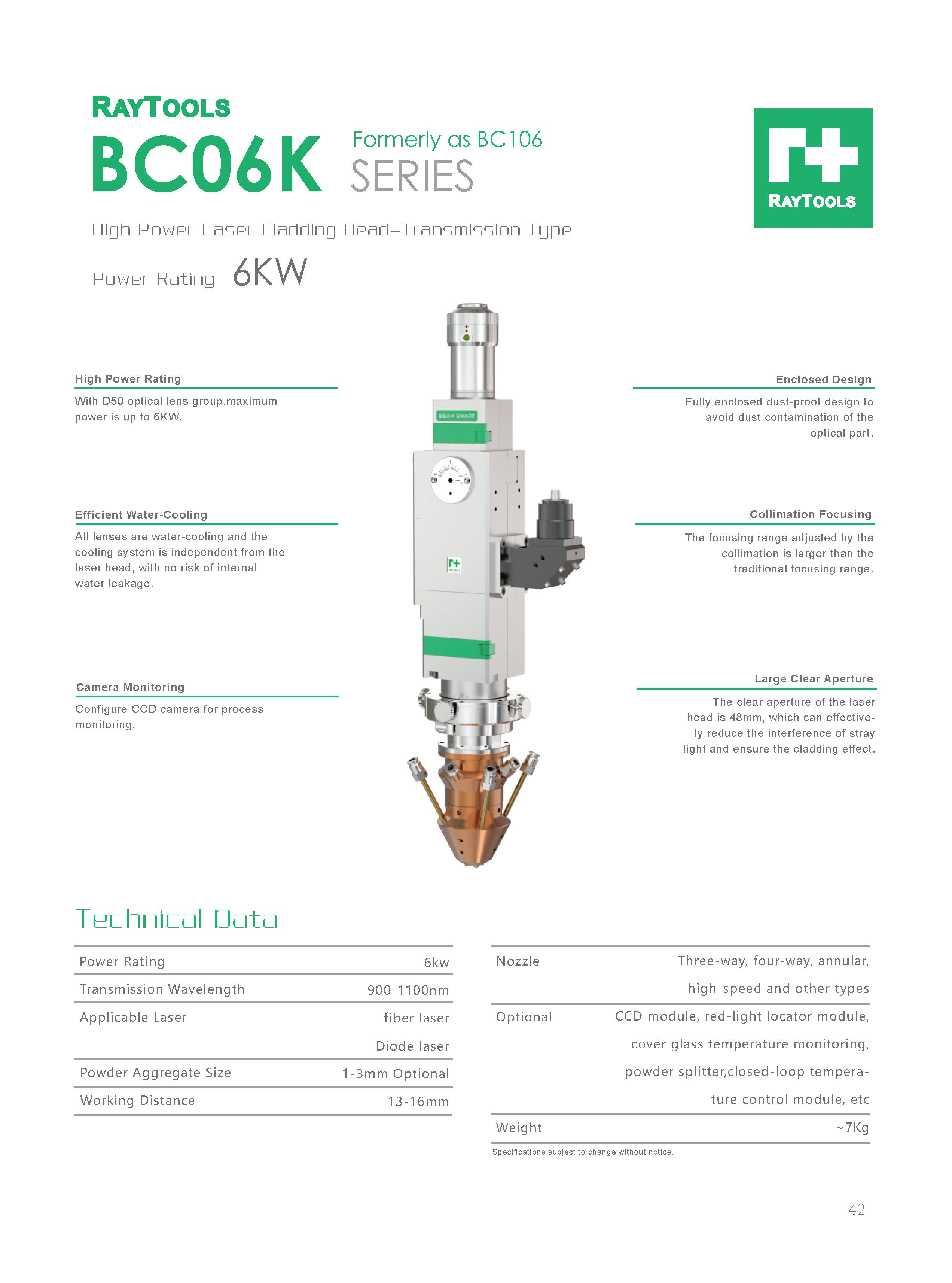

Engineered with a high-performance D50mm optical lens assembly, capable of withstanding laser power up to 6kW for robust, high-power processing.

Every lens features a dedicated cooling channel, isolated from the main head. This innovative design entirely eliminates the risk of internal water leakage, ensuring maximum reliability and component protection.

• Integrated with a CCD camera for real-time monitoring and observation of the machining process.

• • Fully enclosed dust-proof design to provide complete protection for optical components, effectively preventing contamination from dust and debris.

  • Features an adjustable focal point by moving collimation lens with a significantly larger range of adjustment compared to traditional focusing systems.

The large 45mm clear aperture minimizes stray light and maximizes energy transmission, guaranteeing exceptional cladding quality and extending the operational lifespan of the system.

• Optional features of real-time temperature monitoring to optics system.
