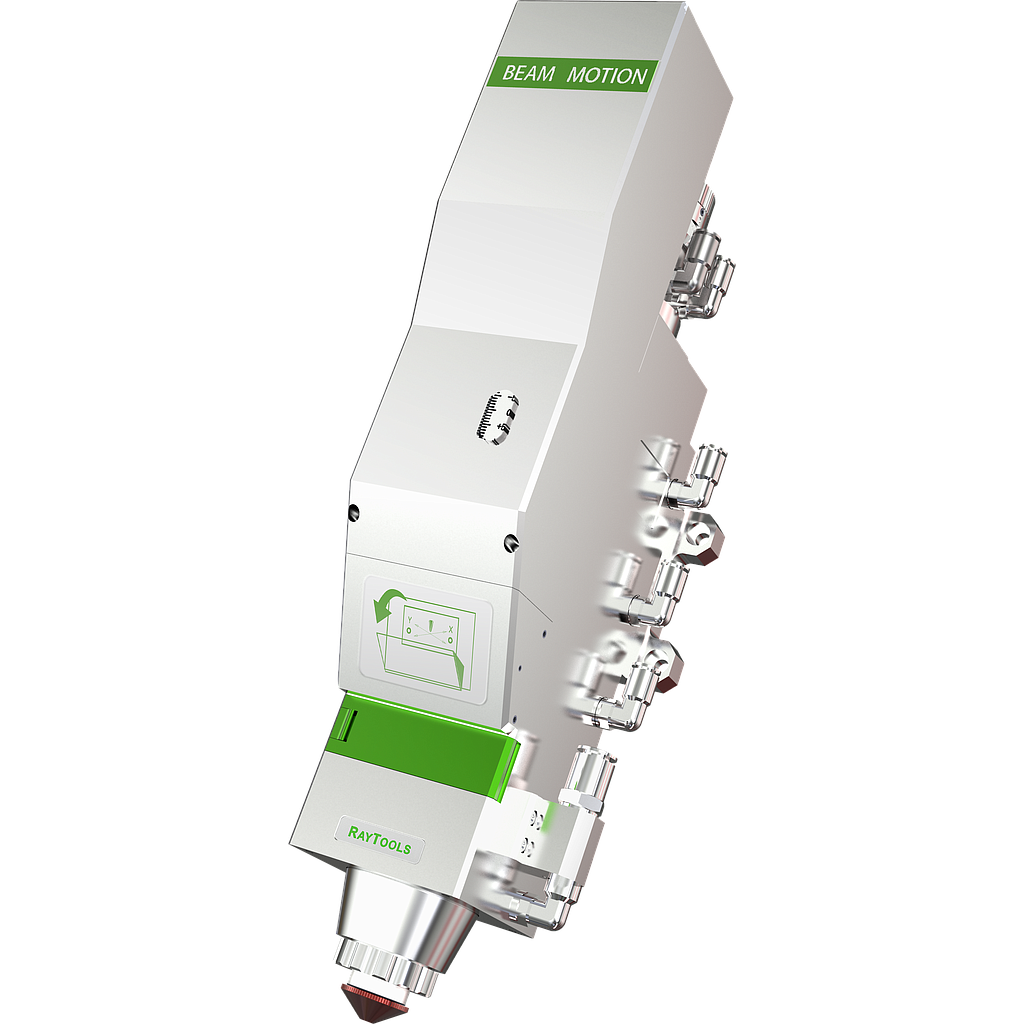

BM115 2.0 Auto Focus Laser Cutting Head (Out of Production)
Power rating 6KW/8KW/12KW; Standard auto focus laser cutting.
- Features
- Technical Data
Integrated design to ensure sealing.
Both collimation and focus lens are water cooled.
Air cooling to nozzle which effectively protecs the nozzle & ceramic part and extend the lifespan.
Compact structure to reduce the payload of Z axis.
35mm clear aperture to effectively reduce stray beam interference and guarantee cutting quality and lifespan.
Auto focus to reduce human intervention.
|
Fiber Interface |
QBH, QD, Q+ |
Collimation Length |
100mm |
|
|
Clear Aperture |
35mm (6kw/8kw); 36.1mm (12kw) |
Focusing Length |
150mm , 200mm |
|
|
Auto Focus |
+10~ -10mm (scale)
|
Nozzle Styles |
Single , Double , Custom |
|
|
- Range |
+22.5 ~ -22.5mm ( FL150 ) |
Diameter of Nozzle Tip |
||
|
|
+40 ~ -40mm ( FL200 ) |
|
Single |
1.5/2.0mm, 2.5/3.0mm, 3.5/4.0mm, 5.0/6.0mm, 7.0/7.5mm, 8.0/8.5mm, 9.5/10.0mm |
|
- Acceleration |
≤10m/s² |
Double |
1.0/1.2mm, 1.4/1.5mm, 1.6/1.8mm, 2.0/2.5mm, 3.0/3.5mm, 4.0/4.5mm, 5.0/6.0mm |
|
|
- Velocity |
≤15m/min |
Assist Gas Pressure |
≤ 30 bar |
|
|
- Accuracy |
≤ 50μm |
Weight |
~ 7 kg |
|
|
Cover Glasses |
|
|||
|
- Collimation Side (Top) |
Φ38.1*1.6mm |
|
||
|
- Focusing Side (Bottom) |
Φ37*7mm |
|||
