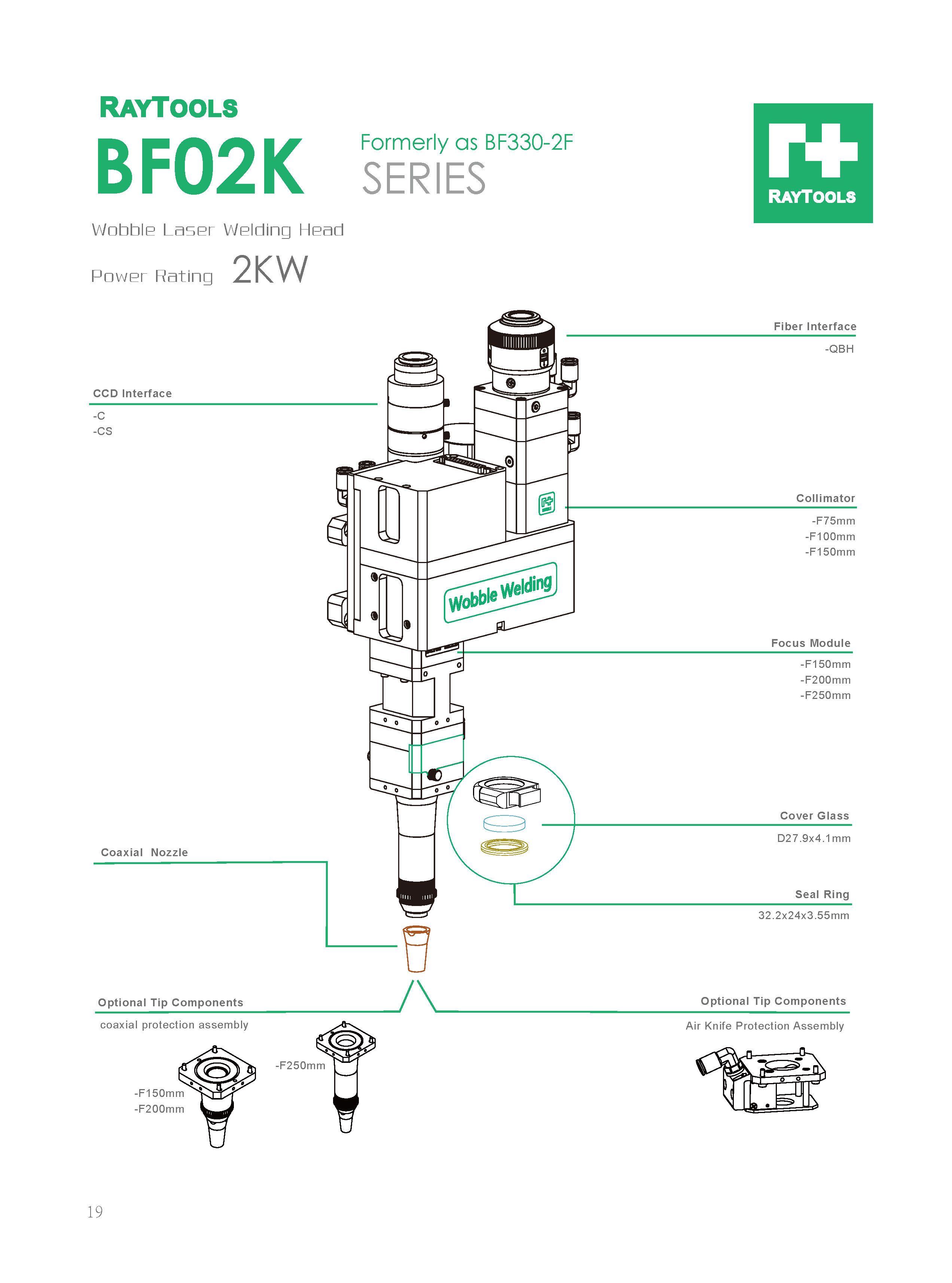

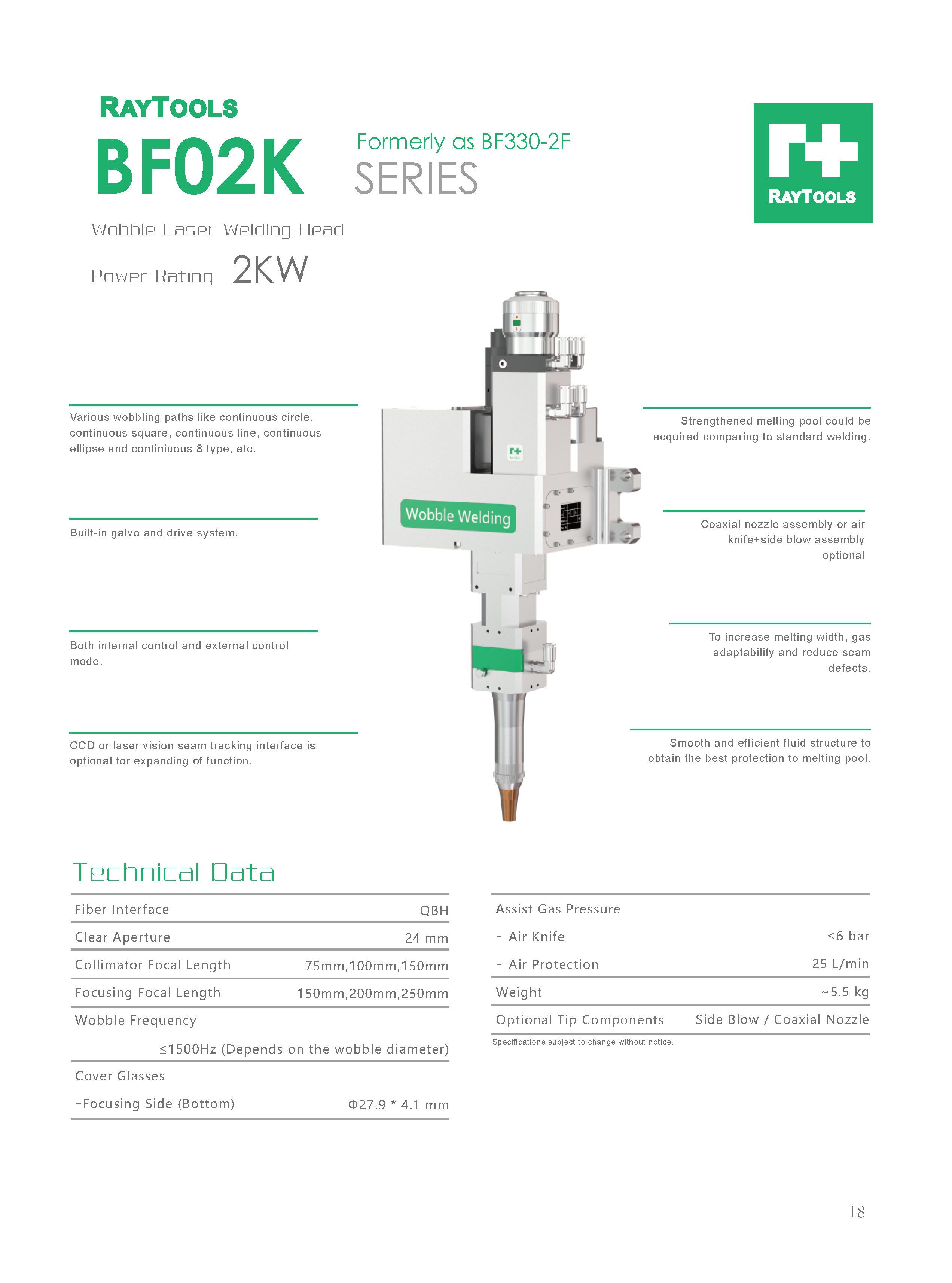

BF330-2F Wobble Laser Welding Head
Power rating 2KW. Wobble welding feature by galvo system. Built-in galvo and drive system.
- Features
- Technical Data
Built-in galvo and drive system.
Both internal control and external control mode.
Various wobbling paths like continuous circle,continuous square, continuous line, continuous ellipse and continiuous 8 type, etc.
Strengthened melting pool could be acquired comparing to standard welding.
Coaxial nozzle assembly or air knife+side blow assembly optional.
To increase melting width, gas adaptability and reduce seam defects.
Smooth and efficient fluid structure to obtain the best protection to melting pool.
CCD or laser vision seam tracking interface is optional for expanding of function.
