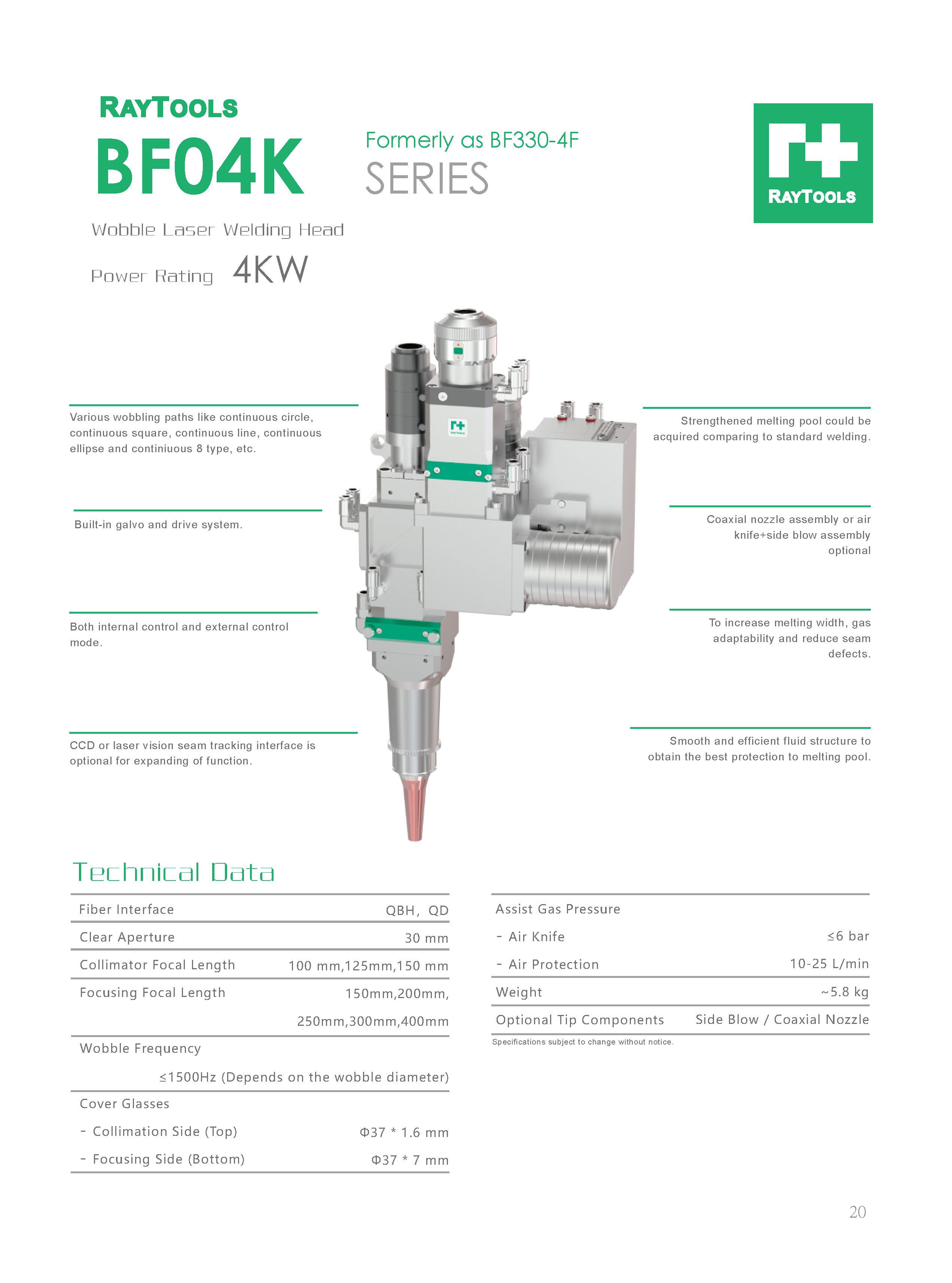

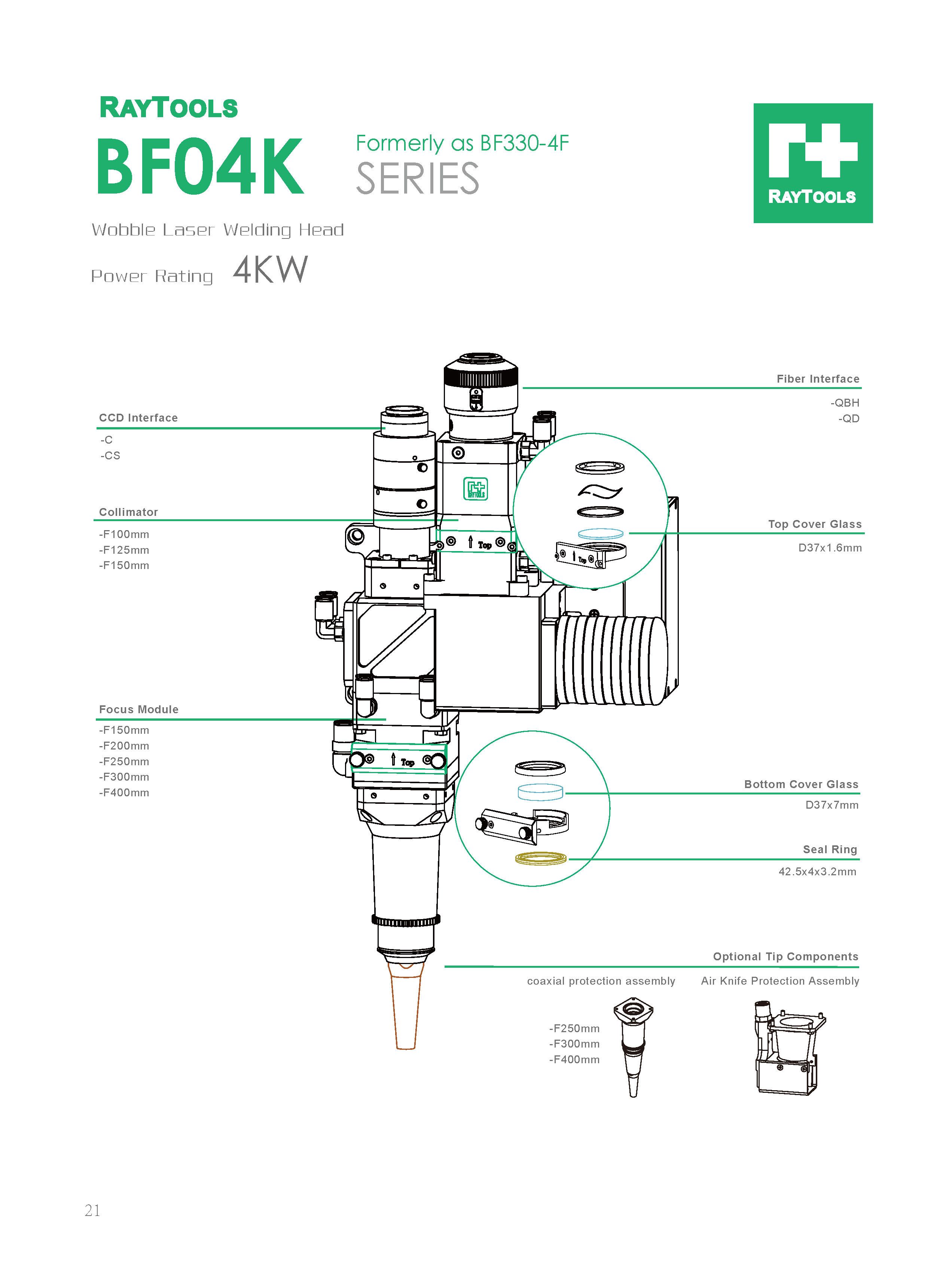

BF330-4F Wobble Laser Welding Head

Power rating 4KW. Wobble welding feature by galvo system. Built-in galvo and drive system.

  • Features

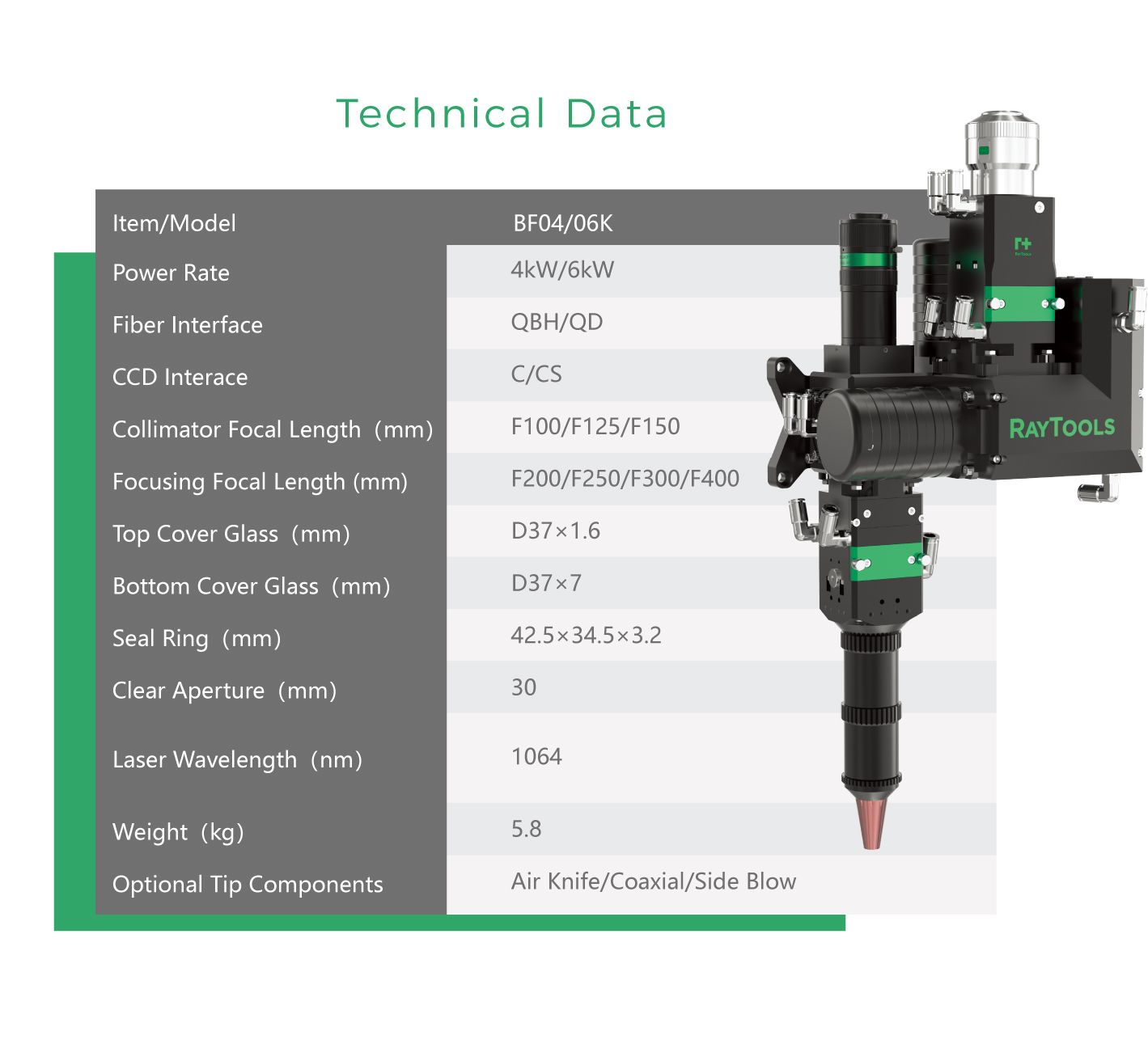

  • Technical Data
  • Built-in galvo and drive system.

  • Both internal control and external control mode.

  • Various wobbling paths like continuous circle,continuous square, continuous line, continuous ellipse and continiuous 8 type, etc.

  • Strengthened melting pool could be acquired comparing to standard welding.

  • To increase melting width, gas adaptability and reduce seam defects.

  • Coaxial nozzle assembly or air knife+side blow assembly optional.

  • Smooth and efficient fluid structure to obtain the best protection to melting pool.

  • CCD or laser vision seam tracking interface is optional for expanding of function.
