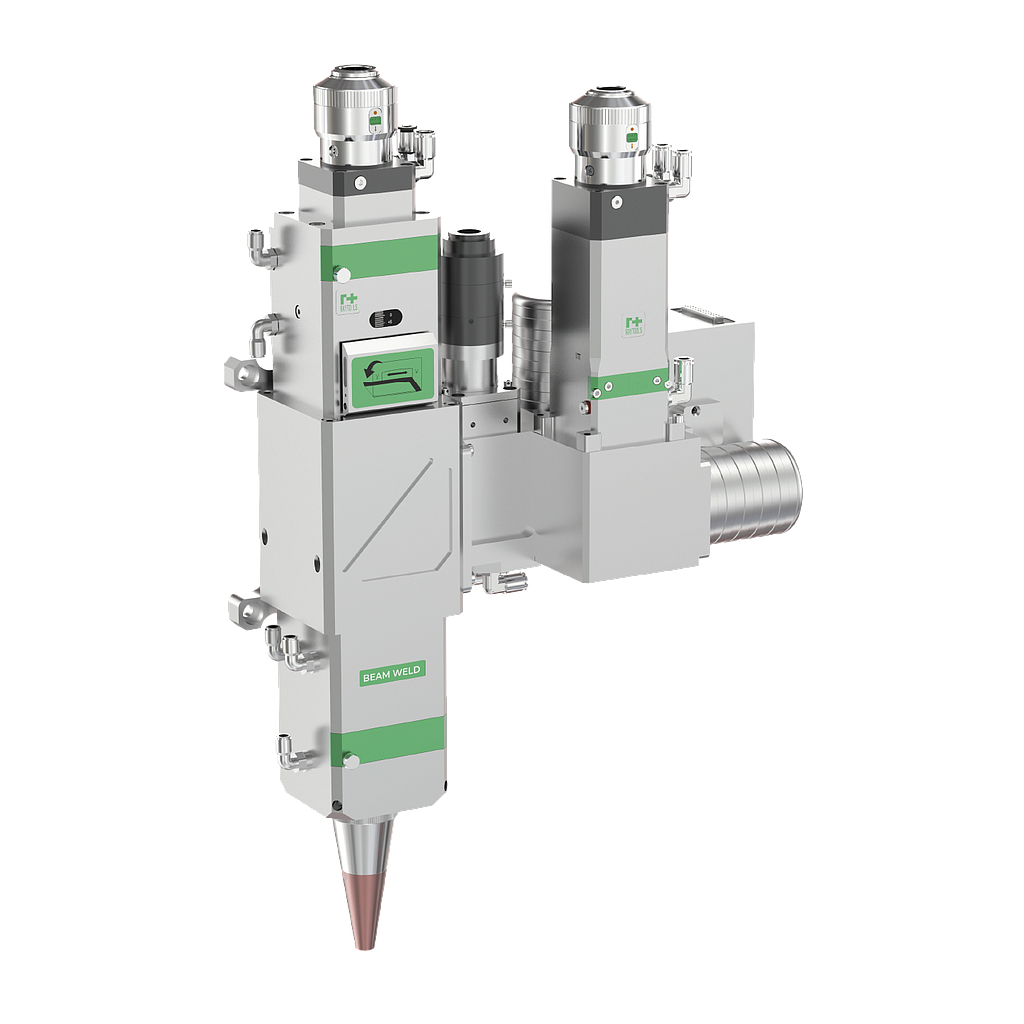

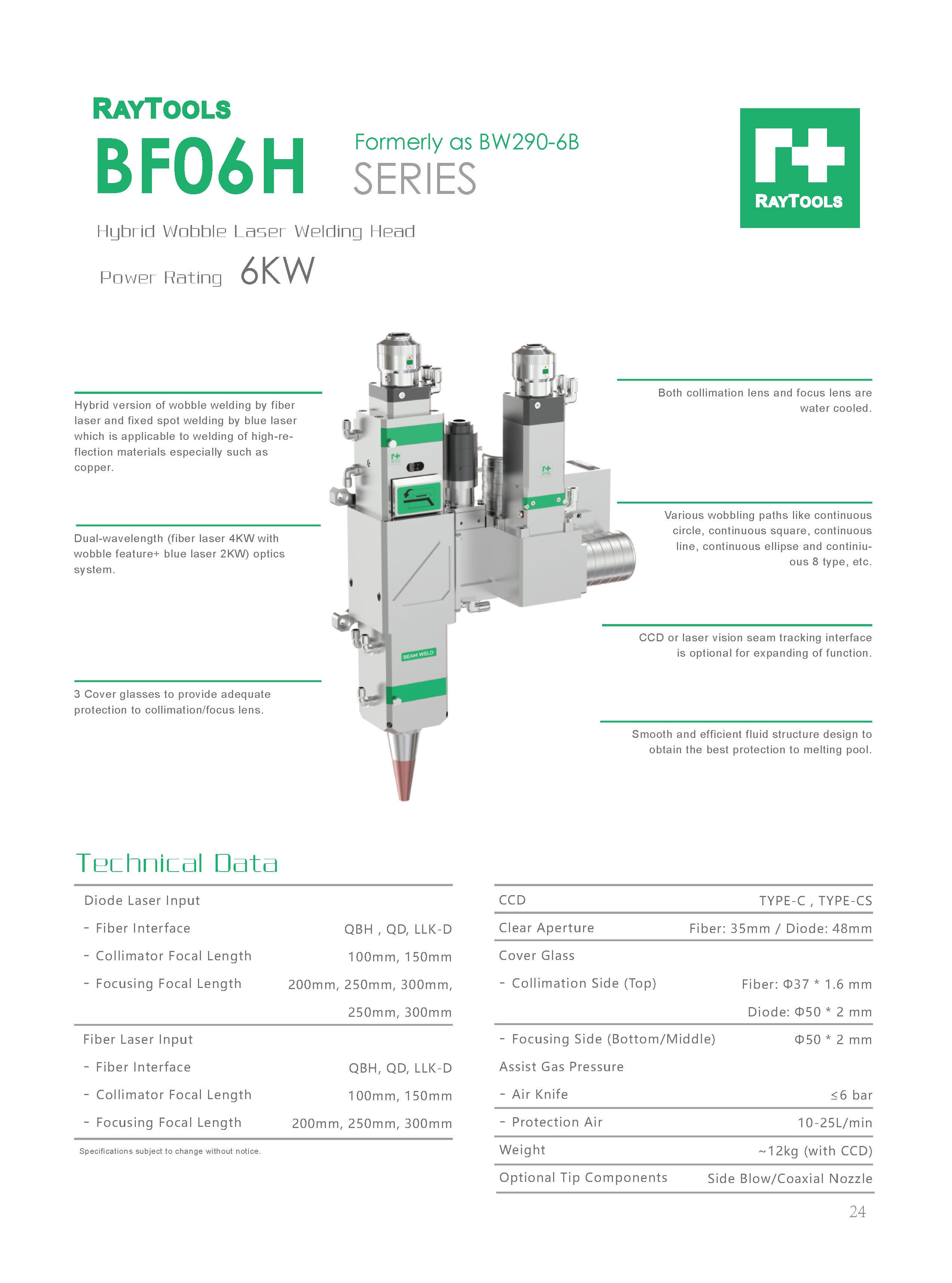

Hybrid version of wobble welding by fiber laser and fixed spot welding by blue laser which is applicable to welding of high-reflection materials especially such as copper.

Dual-wavelength (fiber laser 4KW with wobble feature+ blue laser 2KW) optics system.

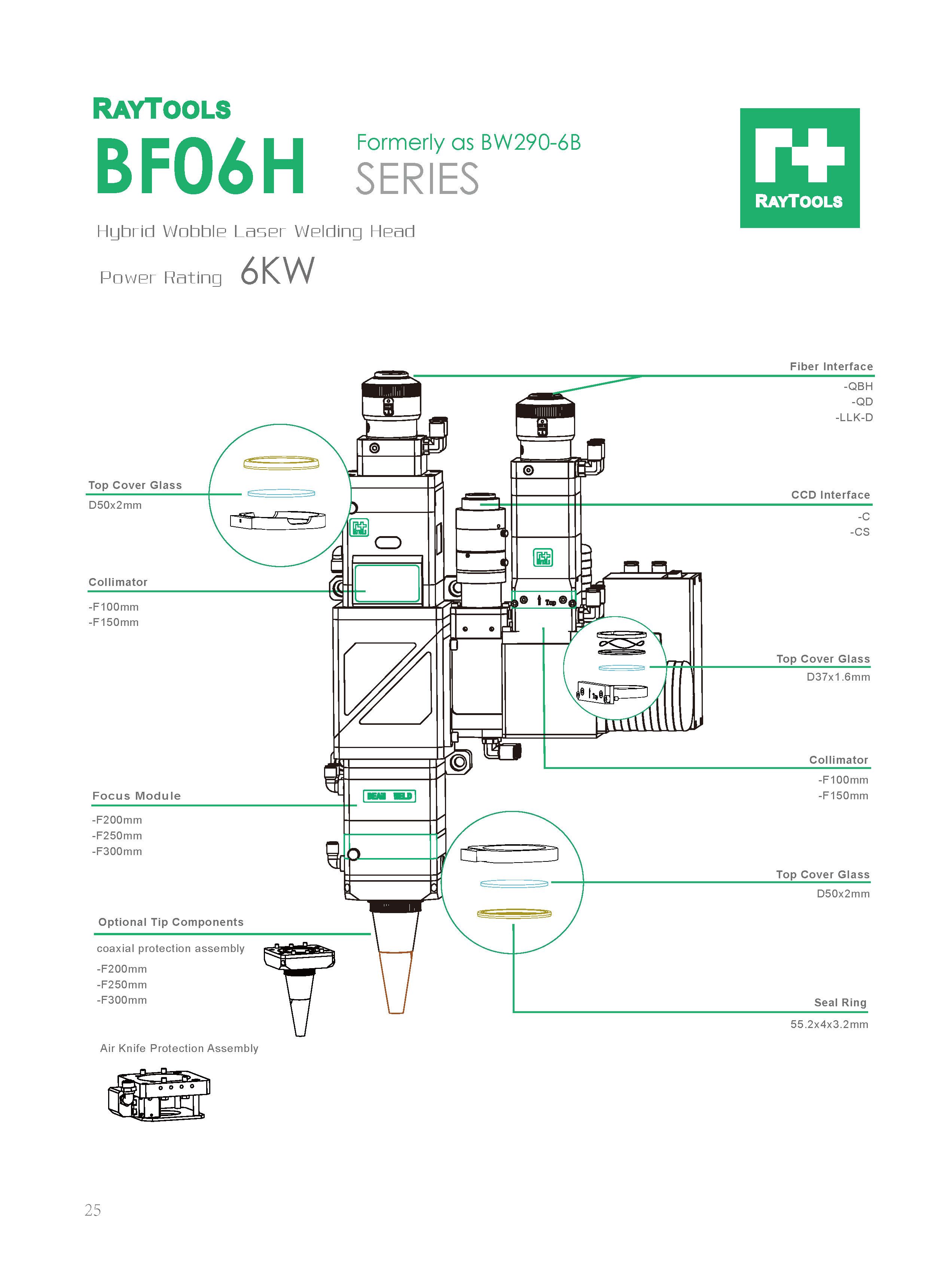

3 Cover glasses to provide adequate protection to collimation/focus lens.

Both collimation lens and focus lens are water cooled.

Various wobbling paths like continuous circle, continuous square, continuous line, continuous ellipse and continiuous 8 type, etc.

CCD or laser vision seam tracking interface is optional for expanding of function.

Smooth and efficient fluid structure design to obtain the best protection to melting pool.
