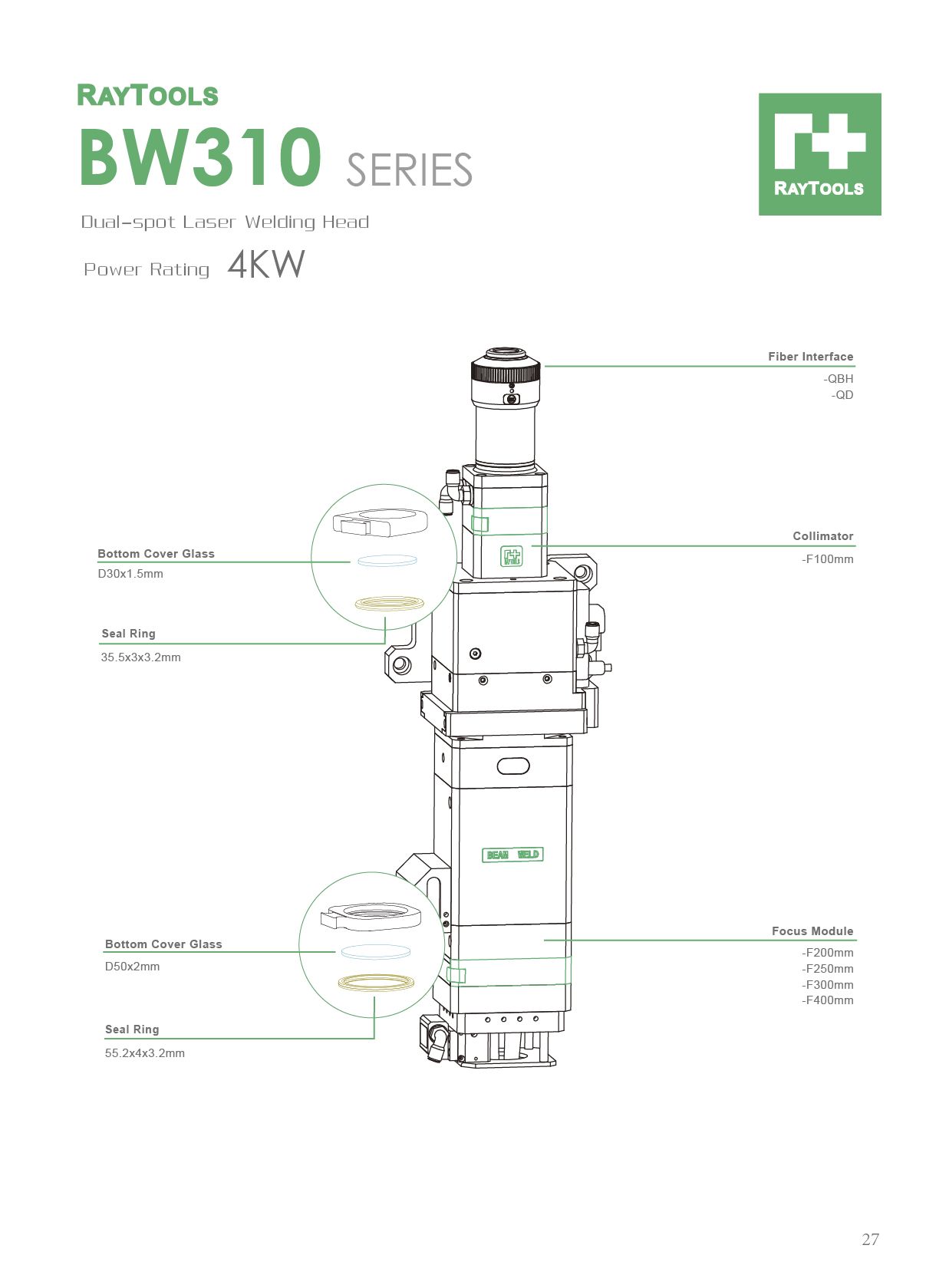

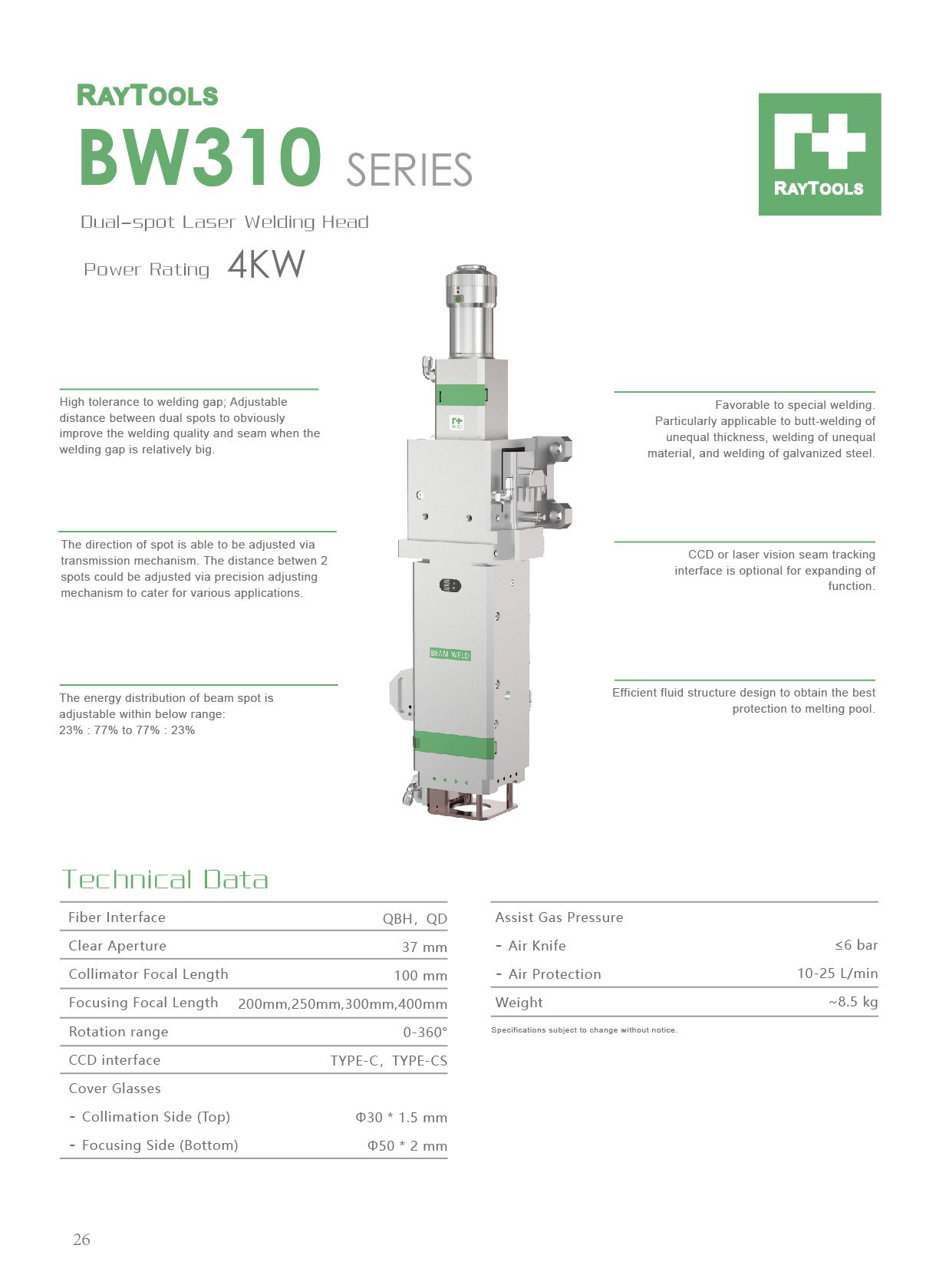

BW310 Dual-spot Laser Welding Head

Power rating 4KW; Dual-spot welding particulary for butt-welding of unequal thickness, different materials and galvanized steel.

  • Features
  • Technical Data

  • High tolerance to welding gap;

  • Favorable to special welding.Particularly applicable to butt-welding of unequal thickness, welding of unequal material, and welding of galvanized steel.

  • The direction of spot is able to be adjusted via transmission mechanism.

  • The energy distribution of beam spot is adjustable.

  • CCD interface and laser vision seam tracking interface is optional for expanding of function.

  • Efficient fluid structure design to obtain the best protection to melting pool.
