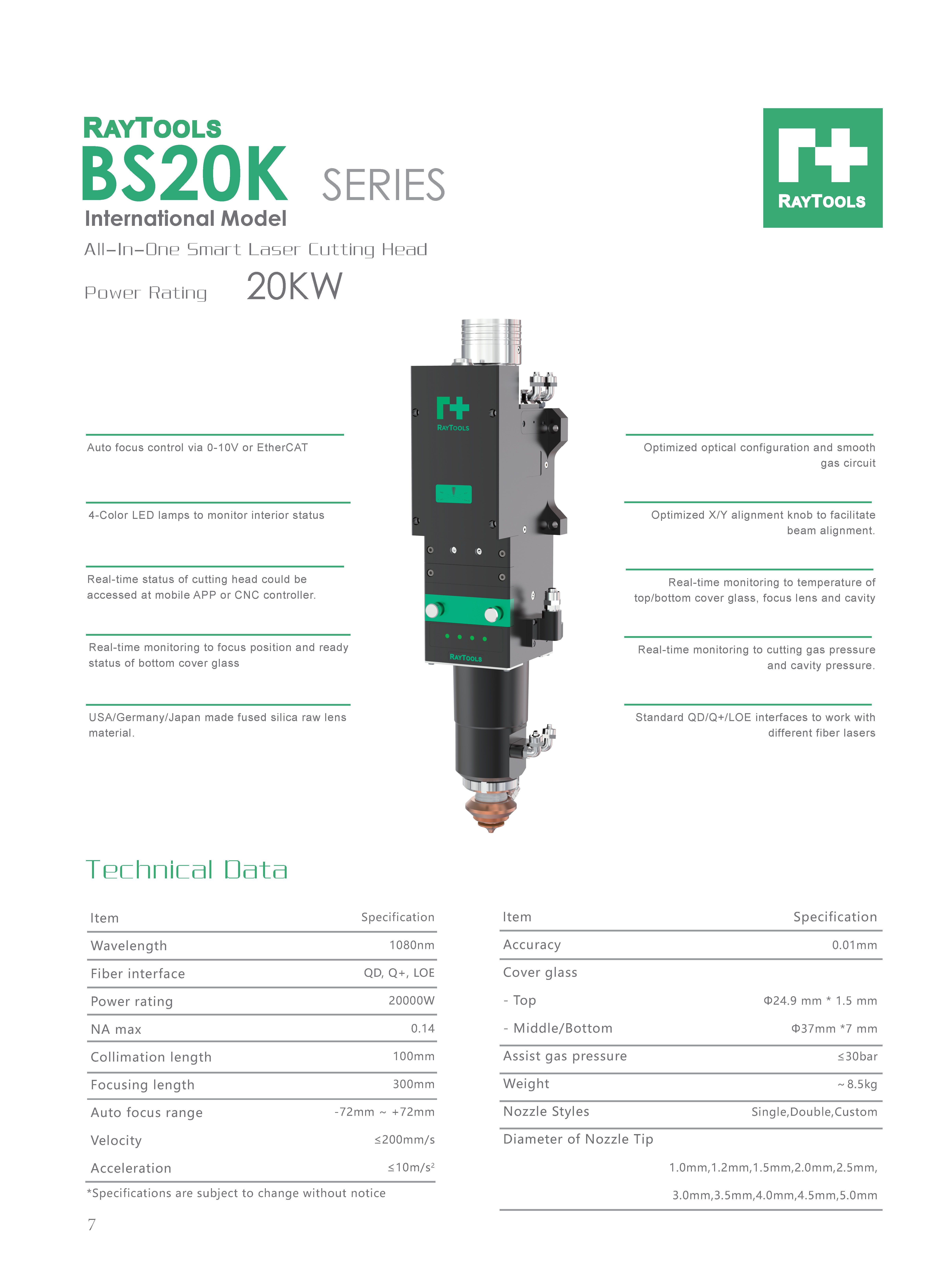

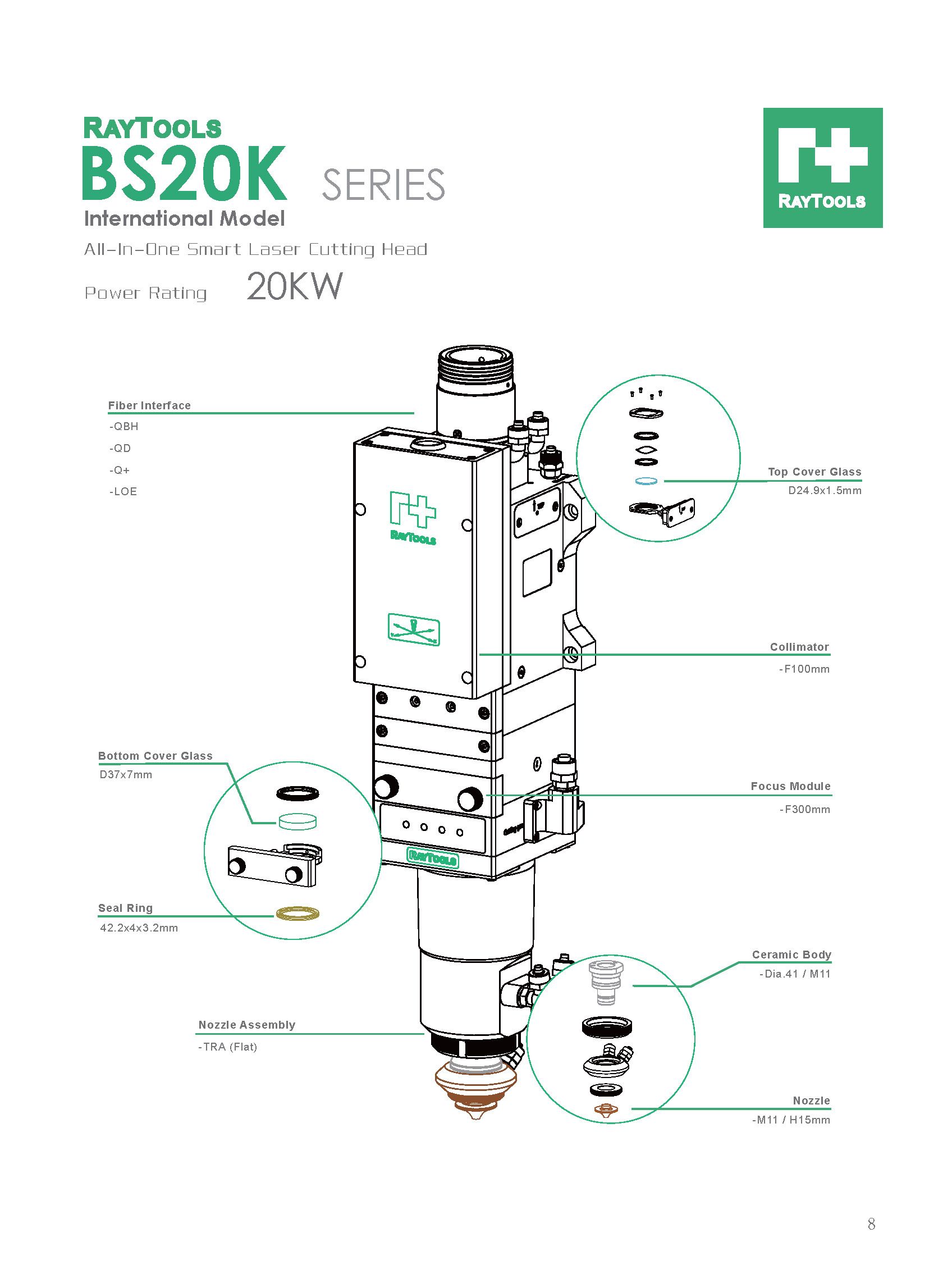

BS20K All-In-One Smart Laser Cutting Head

Power rating 20KW; Fully smart sensor technology with real-time status monitoring by APP or CNC; Auto focus by 0-10V or EtherCAT.

  • Features
  • Technical Data

  • Auto focus control via 0-10V or EtherCAT

  • 4-Color LED lamps to monitor interior status

  • Optimized optical configuration and smooth gas circuit

  • Optimized X/Y alignment knob to facilitate beam alignment.

  • Real-time status of cutting head could be accessed at mobile APP or CNC controller.

  • Real-time monitoring to temperature of top/bottom cover glass, focus lens and cavity

  • Real-time monitoring to focus position and ready status of bottom cover glass

  • Real-time monitoring to cutting gas pressure and cavity pressure.

  • USA/Germany/Japan made fused silica raw lens material.

  • Standard QD/Q+/LOE interfaces to work with different fiber lasers
