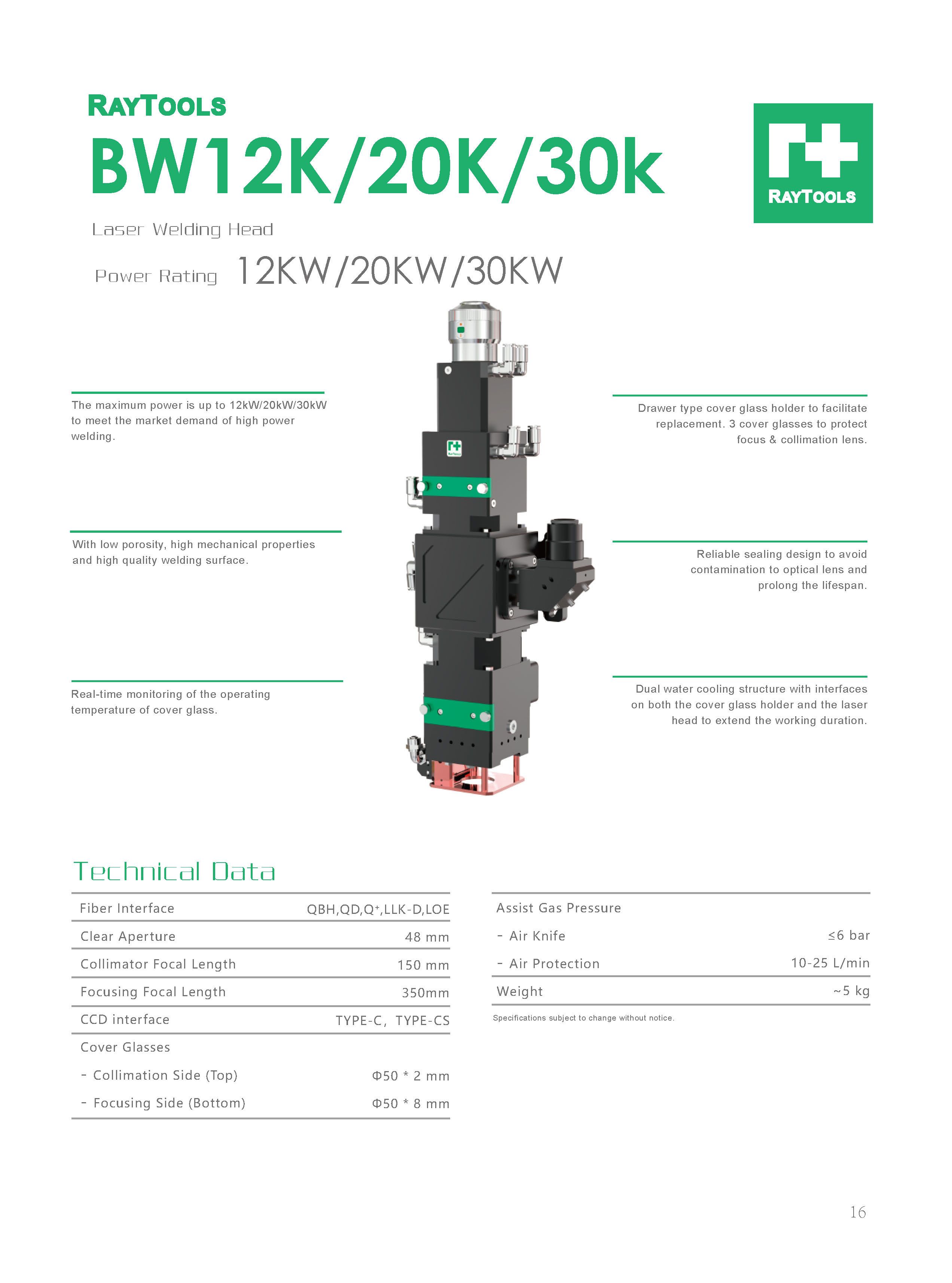

The maximum power is up to 12kW/20/30kW to meet the market demand of high power welding.

With low porosity,high mechanical properties and high quality welding surface.

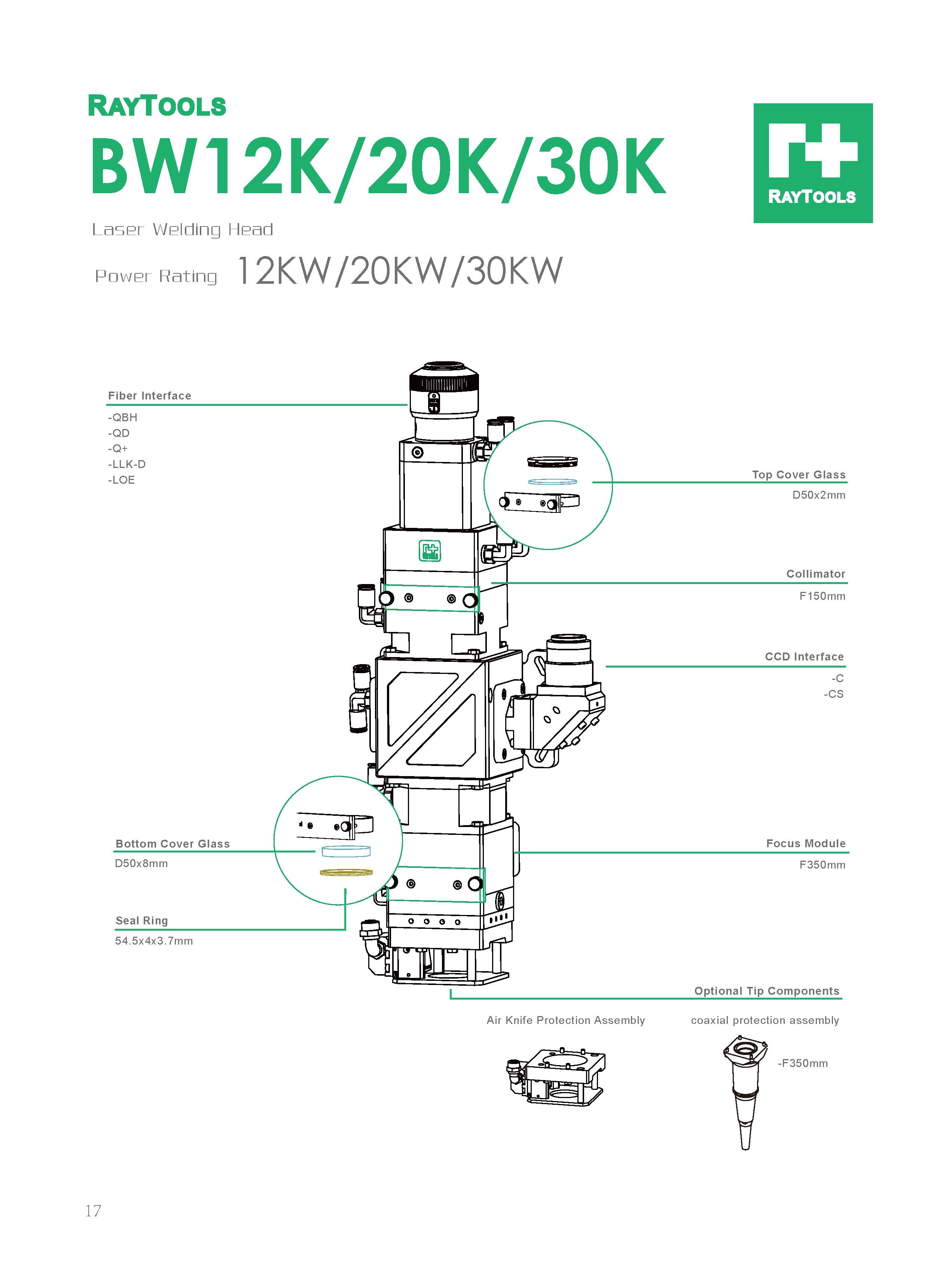

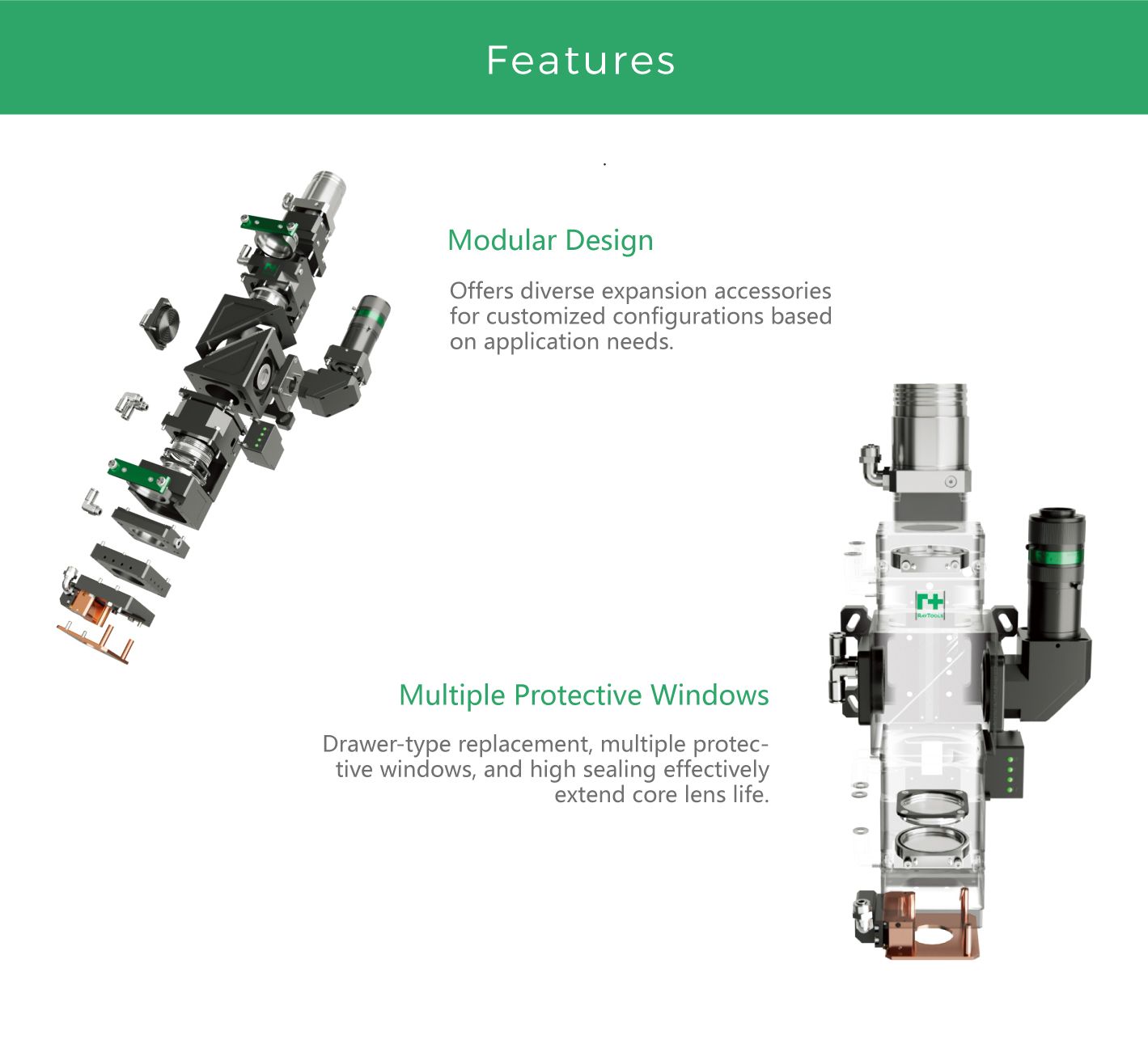

Drawer type cover glass holder to facilitate replacement.3 cover glasses to protect focus & collimation lens.

Reliable sealing design to avoid contamination to optical lens and prolong the lifespan.

Dual water cooling structure with interfaces on both the cover glass holder and the laser head to extend the working duration.

• Real-time temperature monitoring to optics system.

Optional feature of CCD camera for real-time monitoring and observation of the machining process.
