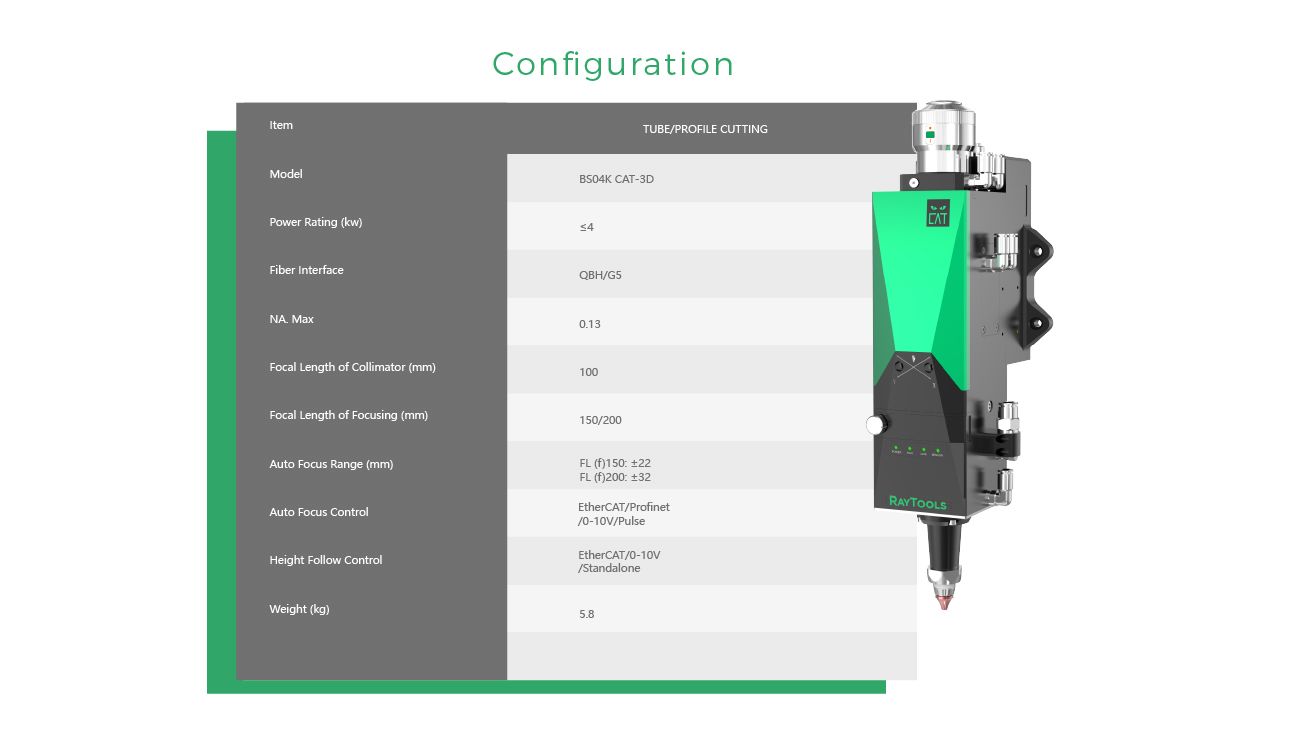

BS04K CAT -3D All New Generation CAT Series Smart Laser Cutting Head (International Model)

Power rating 4KW. All-In-One design. Fully smart sensor technology with real-time status monitoring by APP or CNC. Auto focus by EtherCAT, Profinet, 0-10V or Pulse.

  • Features

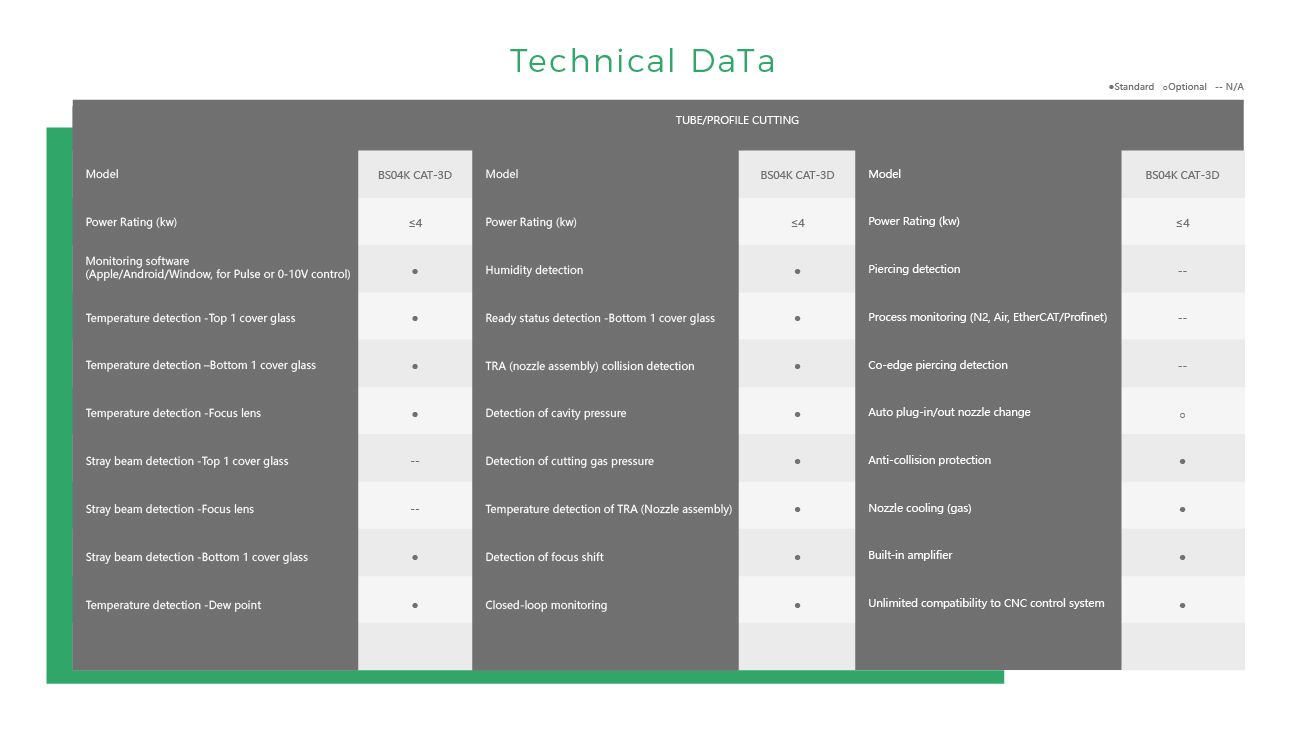

  • Technical Data

  • Auto focus control via EtherCAT, Profinet, 0-10V or Pulse.

  • 4 cover glasses to further secure the dust protection.

  • Real-time status of cutting head could be accessed at mobile APP or CNC controller.

  • Real-time detection to focus position and ready status of bottom cover glass.

  • Real-time detection to temperature of top/bottom cover glass and focus lens.

  • Real-time detection to stray beam to improve the detection sensitivity of optics contamination while nitrogen cutting.

  • Real-time detection and closed loop control to cutting gas pressure.

  • Real-time detection to temperature of dew point.

  • Real-time detection to cavity pressure.

  • Real-time detection to temperature of TRA (nozzle assembly) to secure stable capacitance for proper height follow and cutting.

  • Anti-collision protection of TRA (nozzle assembly).

  • Nozzle cooling by gas to improve cutting capacity.

  • Built-in amplifier design to help improve capacitance stability and decline interference.

  • Standard QBH/G5 interfaces to work with different fiber lasers.
